EcoLiner Plus Battery Powered Field Striper


Part #: 10004484 Category:

The EcoLiner Plus Battery Powered Field Striper features the same heavy duty, diaphragm pump powered by a 12-volt deep cycle battery that our EcoLiner Standard has and adds the convenience of a 1-Gallon Cleaning Tank and Detachable Spray Gun with 12″ Hose. Use it to easily paint professional quality lines for hours on a single battery charge. Bucket not included

  • Detachable Spray Gun with 12′ Hose
  • 1-Gallon Cleaning Tank
  • Proudly Made in the USA
  • 24 Month Warranty
  • Free Shipping Available

**Battery & 5-Gallon Bucket are not included


The EcoLiner Plus Battery Powered Field Striper features:

Easy to Use: Simply, place a 5-gallon pail of premixed paint on the machine and you are ready to mark your field. Plus, changing colors is both fast and easy to do with the operator friendly design of this field paint machine.

Safe Operation: No pressurized tanks. No need to release pressure to add paint or clean. No high-pressure pump output to prohibit operator injury.

Simple Cleanup: When finished painting, simply flush clean water through the spraying system and the machine is ready for your next field marking job. Plus, the EcoLiner Plus Field Striper machine has an onboard clean water reservoir that allows for instantaneous cleaning of the spraying system without the need of additional water buckets and containers.

Paint Fields in Half the Time – The efficient spray nozzle design of this field paint machine marks high-quality lines the first time, eliminating the need for tedious touch up and repainting of lines for increased visibility. Plus, the line width is fully adjustable from 2 inch -6 inch, allowing for greater flexibility to meet your field marking needs.

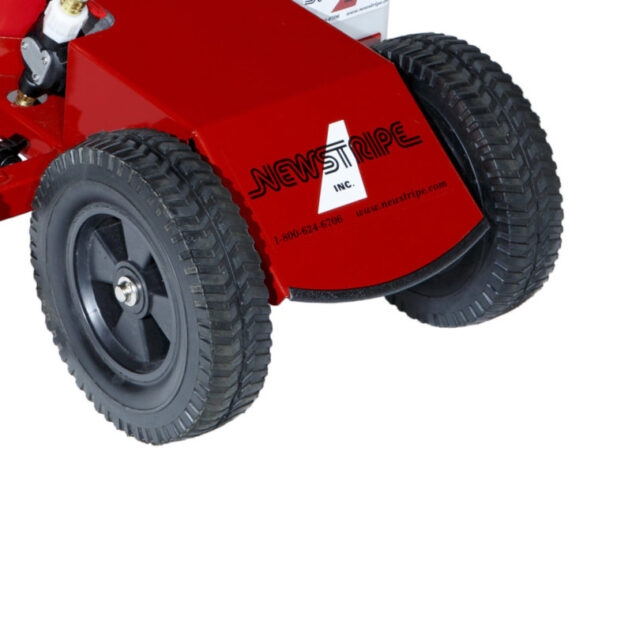

Flat Free Tires: Perfect for use on athletic fields, the EcoLiner Plus Field Striper machine is assembled with flat-free tires with a knobby tread that meets the rigorous demands of uneven turf and will never go flat.

Convenience: The EcoLiner Plus Field Striper comes equipped with a quick charge 120V plug in battery charger to provide the fastest charging time available. This rapid battery charger is a great time-savings addition for increased performance flexibility. (Battery not included)

Versatile: Quick release clamp allows you to remove the spray gun for effortless painting of stencils with a 12′ hose.

No Clogs: This field paint machine features a large mesh filter on the intake hose with an additional inline filter and check valve to eliminate clogged tips and messy dripping. Cleaning the filters and tips takes less than 30 seconds.

Built to Last: This battery powered field striper machine is made with all welded steel construction and quality components to provide you with years of trouble-free service.

24 Month Warranty: This field paint machine has guaranteed protection against defects in materials and workmanship.

Specs & Docs


Athletic Field Striping

Spray Pump

Low Pressure Electric (12V)


Walk Behind


Battery Powered Electric (12V)

Paint Capacity

5 Gallon


10" Flat Free


Proudly Made in the USA


24 Months


46" L x 21.25" W x 37" H

Dimensions (Ship)

36" L x 22" W x 23" H

Weight (Ship)

78 lbs
